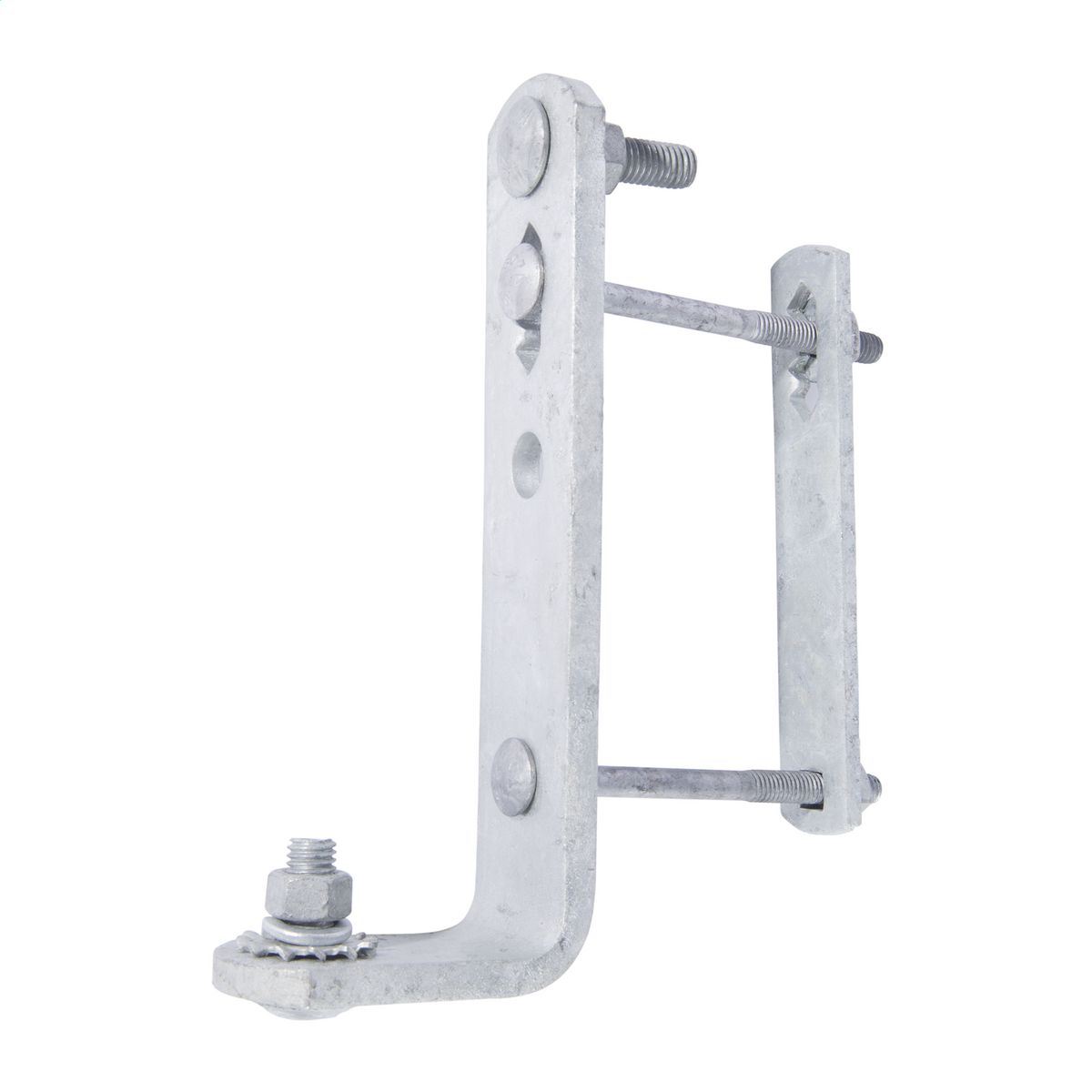

| Combination Cutout and Arrester Brackets for Crossarm Mounting | ||||||||||||
|
Catalog Number
|
Accomodates Crossarm Heights | Accomodates Crossarm Widths | Crossarm Bolts | Extension (Face of Arm to Center of Mounting Bolt) | Material Size | Approx. Ship Wt. per Each | ||||||
| inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | lbs | kg | |
| CCAB518 |
4-1/8" to 5-1/8"
|
4-1/8" to 5-1/8"
|
2-3/4" to 4"
|
2-3/4" to 4"
|
3/8" x 5"
|
3/8" x 5"
|
2-9/16"
|
2-9/16"
|
5/16" x 1-1/2"
|
5/16" x 1-1/2"
|
3,34 | 3,34 |
| CCAB518 | 3,4 | 3,4 | ||||||||||
| CCAB518 | 3,34 | 3,34 | ||||||||||
| CCAB518 | 2-3/4" | 2-3/4" |
3/8" x 2"
|
3/8" x 2"
|
4 | 4 | ||||||
| CCAB07 | 5" to 7" | 5" to 7" | 2-3/4"to 6" | 2-3/4"to 6" | 3/8" x 7" | 3/8" x 7" | 6" | 6" | 4,67 | 4,67 | ||
